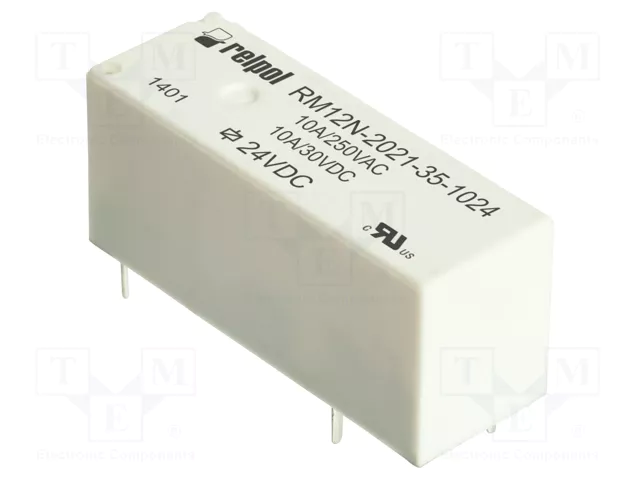

Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Contacts configuration
• Rated coil voltage 24V DC
• Contact current max. 10A
• AC contacts rating @R(at resistive load) 8A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 8A / 28V DC
• at resistive load
• Manufacturer series RM12N
• Switched voltage max. 30V DC, max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2.35kΩ
• Coil voltage min. 16.8V DC
• Coil voltage max. 31.2V DC
• Operate time 10ms

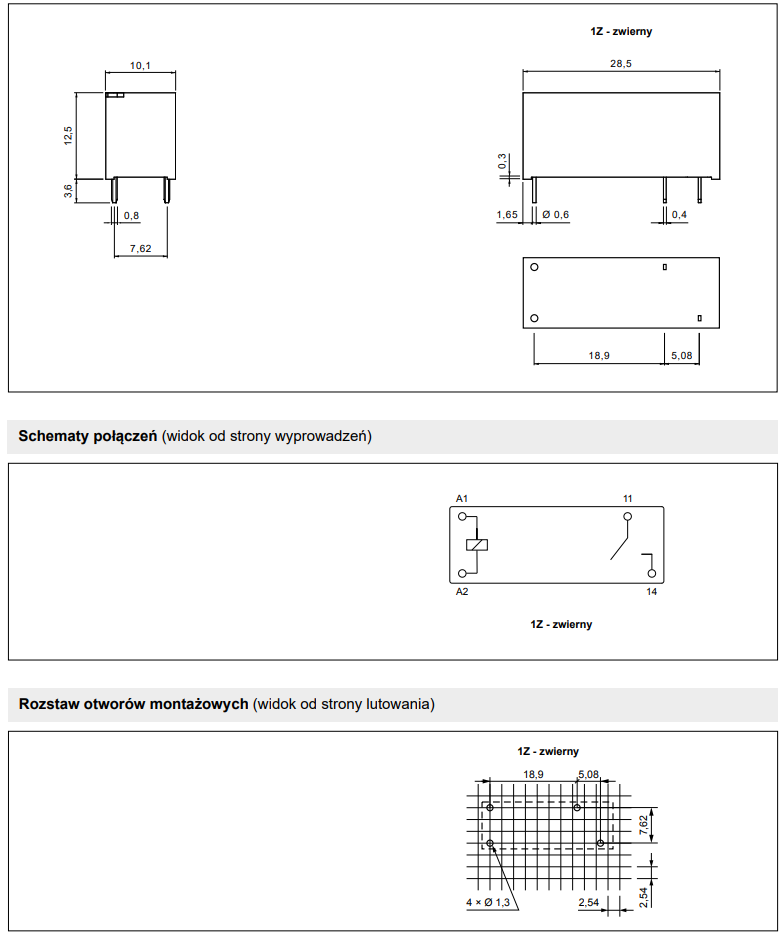

• Body dimensions 28.7x10.3x12.7mm
• Release time 5ms
• Coil power consumption 220mW
• IP rating IP67
• Mechanical durability 100000000 cycles
• Operating temperature -40...85°C
• Contact resistance 100mΩ
• Electrical life 100000 cycles
• Contact material AgNi
• Terminal pitch 7.62mm
• OEM number 2614967
• Gross weight7.48 g

Parametri

RELPOL
DC24V
SPST-NO
10A/250VAC
10A/30VDC
uz saslēgšanu
monostabilais
1
