Apraksts

• Manufacturer OMRON
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 10 A / 250 VAC
• DC contacts rating
• (at resistance load) 10 A / 30 VDC
• Contact current max. 10A
• Switched voltage max 250V AC, max 125V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2.88kΩ;
• Operate time 10ms

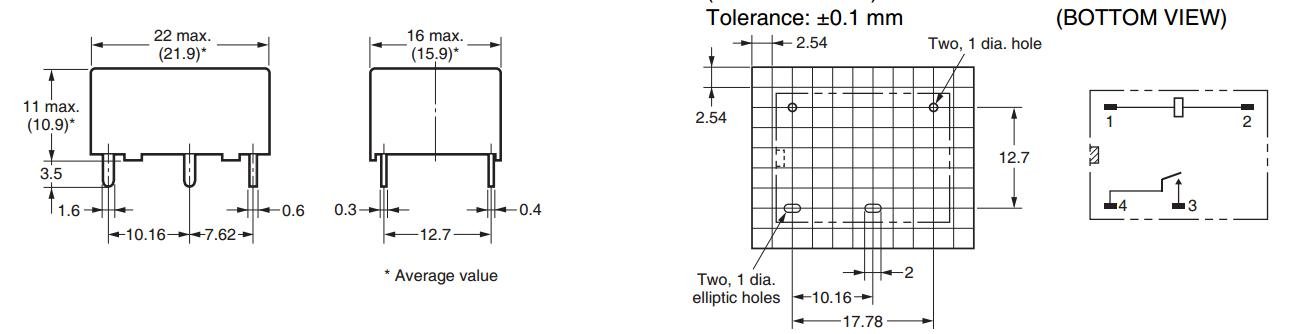

• Body dimensions 22 x 16 x 11mm
• Release time 10ms
• Coil power consumption 200mW
• Operating temperature -25...70°C
• Relay series G5CA
• Contact resistance 30mΩ;
• Contacts pitch 10.16mm
• Coil current 8.3mA

Parametri

OMRON
DC24V
SPST-NO
10A/250VAC
10A/30VDC
uz saslēgšanu
monostabilais
1
