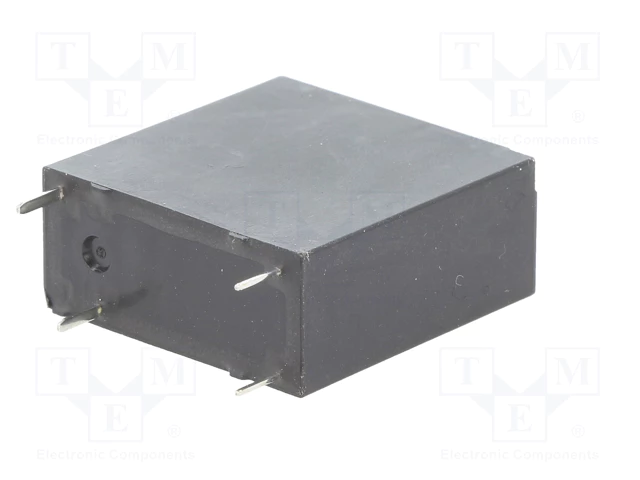

Apraksts

• Manufacturer OMRON OCB
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• Contact current max. 16A
• AC contacts rating @R(at resistive load) 16A / 250V AC
• Switched voltage max. 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 1087Ω

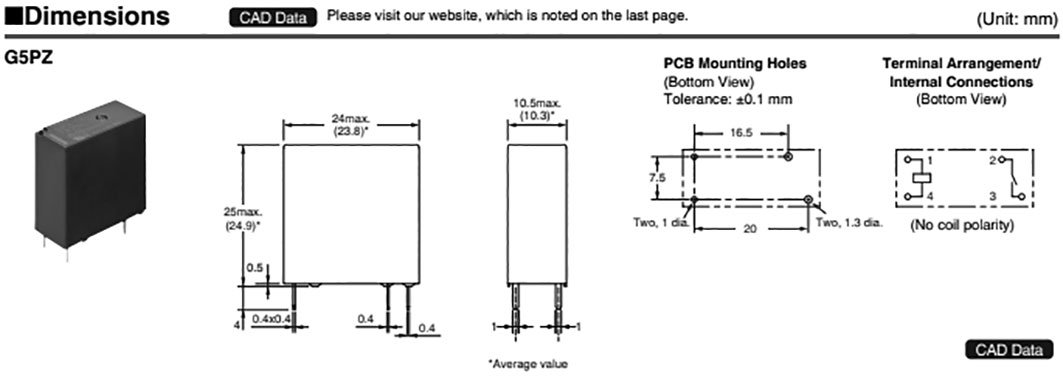

• Body dimensions 23.8x10.3x24.9mm
• Operating temperature -40...70°C
• Relay series G5PZ
• Contact resistance 100mΩ
• Coil current 22.1mA

Parametri

OMRON
DC24V
SPST-NO
uz saslēgšanu
monostabilais
1
16A/250VAC

Papildu dokumentācija
