Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Contacts configuration
• Rated coil voltage 24V DC
• Contact current max. 16A
• AC contacts rating @R(at resistive load) 16A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 16A / 24V DC
• at resistive load
• Relay series RT/5
• Switched voltage max. 300V DC, max. 400V AC
• Relay variant miniature
• Mounting THT
• Coil resistance 1,44kΩ
• Coil voltage min. 16,8V DC

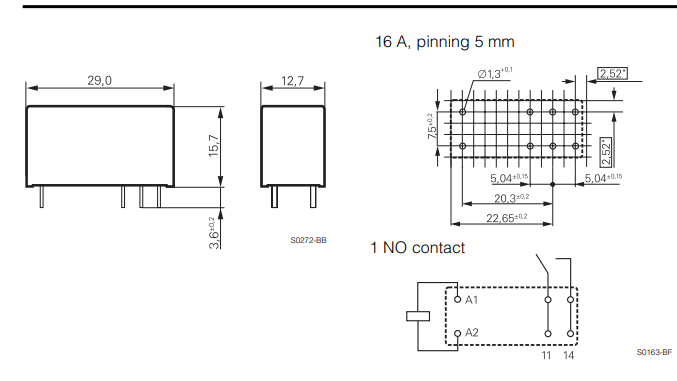

• Body dimensions 29x15,7x12,7mm
• Coil power consumption 400mW
• IP rating IP40
• Mechanical durability 30000000 cykli
• Operating temperature -40...70°C
• Switching capacity 3kVA
• Contact material AgNi
• Terminal pitch 5mm
• Height 15,7mm
• Number of pins 6
• Max surge current 30A
• Masa bruto12.695 g

Parametri

TE Connectivity
SPST-NO
16A/250VAC
16A/24VDC
uz saslēgšanu
monostabilais
1
DC24V
