Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 20 A / 250 VAC
• DC contacts rating
• (at resistance load) 20 A / 24 VDC
• Contact current max. 20A
• Switched voltage max 250V DC, max 440V AC
• Relay variant miniature, vertical
• Mounting PCB
• Coil resistance 2.3kΩ;
• Coil voltage min. 18V DC
• Coil voltage max. 72V DC
• Operate time 8ms

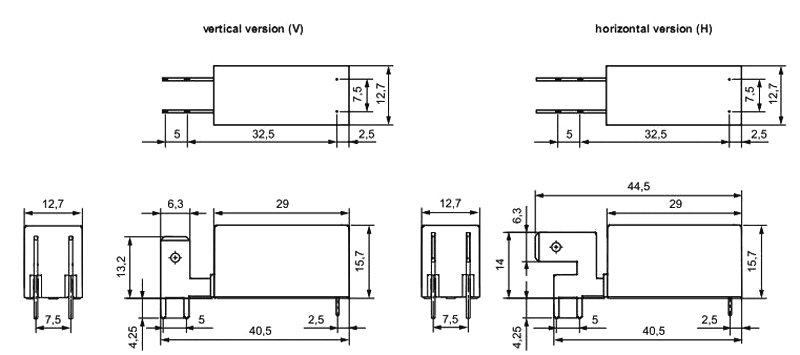

• Body dimensions 29 x 12.7 x 15.7mm
• Release time 3ms
• Coil power consumption 250mW
• Sealing IP40
• Operating temperature -40...105°C
• Relay series RM85
• Contact resistance 100mΩ;
• Contacts pitch 7.5mm
• Leads for PCB, 6.3x0.8mm connectors

Parametri

RELPOL
DC24V
SPST-NO
20A/250VAC
20A/24VDC
uz saslēgšanu
monostabilais
1
