Apraksts

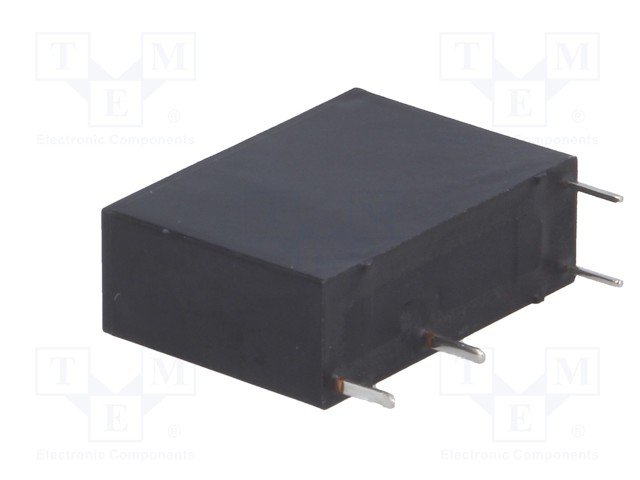

• Manufacturer OMRON
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 5 A / 250 VAC
• DC contacts rating
• (at resistance load) 3 A / 30 VDC
• Contact current max. 5A
• Switched voltage max 250V AC, max 30V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2.88kΩ
• Operate time 10ms

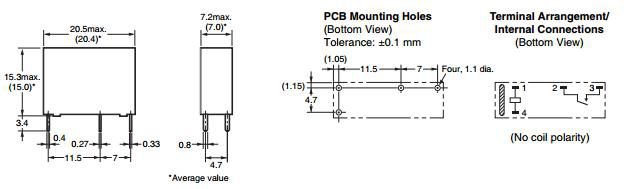

• Body dimensions 20.5 x 7.2 x 15.3mm
• Release time 10ms
• Coil power consumption 200mW
• Operating temperature -40...70°C
• Relay series G5NB
• Contact resistance 100mΩ
• Terminal pitch 7mm
• Coil current 8.3mA
• Enclosure description Standard seal

Parametri

OMRON
DC24V
SPST-NO
5A/250VAC
3A/30VDC
uz saslēgšanu
monostabilais
1

Papildu dokumentācija
