Apraksts

• Manufacturer OMRON OCB
• Type of relay electromagnetic
• Contacts configuration  SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating @R  5A / 250V AC
• DC contacts rating @R  5A / 30V DC
• Contact current max. 5A
• Switched voltage max. 30V DC,  max. 250V AC
• Relay variant miniature
• Mounting PCB,  socket
• Coil resistance 2.88kΩ
• Operate time 10ms
• Body dimensions 17.5x6.5x12.5mm
• Release time 5ms
• Coil power consumption 200mW
• Operating temperature -25...70°C
• Relay series G6D
• Contact resistance 100mΩ

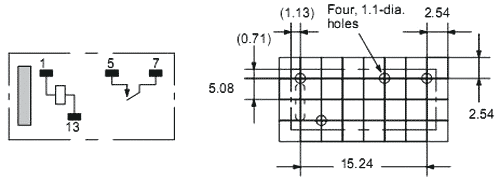

• Terminal pitch 5.08mm
• Coil current 8.3mA
• Additional information
• Gross weight: 3.05 g
• Manufacturer part number: G6D-1A-ASI 24VDC

Parametri

OMRON
DC24V
SPST-NO
5A/250VAC
5A/30VDC
uz saslēgšanu
monostabilais
1
