Apraksts

• Manufacturer FORWARD INDUSTRIAL CO.
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistance load) 5A / 250VAC
• DC contacts rating @R
• (at resistance load) 5A / 30VDC
• Contact current max. 5A
• Switched voltage max 250V AC, max 110V DC
• Relay variant interface
• Mounting PCB
• Coil resistance 3.2kΩ

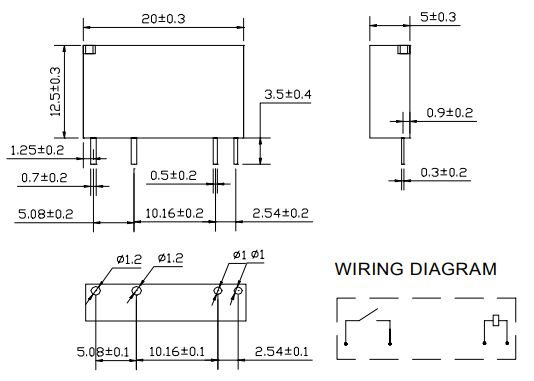

• Body dimensions 20 x 12.5 x 5mm
• Coil power consumption 180mW
• Mechanical durability 20000000cycles
• Operating temperature -40...70°C
• Weight 3g
• Relay series FRM18
• Contact resistance 50mΩ
• Contact material silver alloy
• Terminal pitch 5mm
• Coil current 7.5mA

Parametri

FORWARD INDUSTRIAL CO.
DC24V
SPST-NO
5A/250VAC
5A/30VDC
uz saslēgšanu
monostabilais
1
