Apraksts

• Manufacturer HONGFA RELAY
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistance load) 5A / 250VAC
• DC contacts rating @R
• (at resistance load) 5A / 30VDC
• Contact current max. 5A
• Switched voltage max 250V AC, max 30V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 3.2kΩ
• Coil voltage min. 16.8V DC
• Coil voltage max. 28.8V DC
• Operate time 10ms

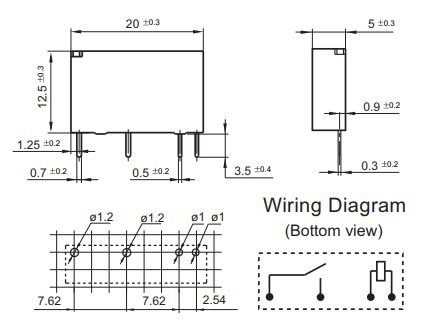

• Body dimensions 20 x 5 x 12.5mm
• Release time 5ms
• Coil power consumption 180mW
• Operating temperature -40...85°C
• Contact resistance 100mΩ
• Contact material AgSnO2
• Terminal pitch 7.62mm

Parametri

HONGFA RELAY
DC24V
SPST-NO
5A/250VAC
5A/30VDC
uz saslēgšanu
monostabilais
1
