Apraksts

• Manufacturer FUJITSU
• Type of relay electromagnetic
• Contacts configuration  SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating @R  5A / 250V AC
• (at resistive load)
• DC contacts rating @R  5A / 30V DC
• (at resistive load)
• Contact current max. 5A
• Switched voltage max. 150V DC,  max. 270V AC
• Relay variant interface
• Mounting PCB
• Coil resistance 4.8kΩ
• Operate time 10ms
• Body dimensions 20.1x5x17.5mm
• Release time 5ms
• Coil power consumption 120mW
• Mechanical durability 2000000 cycles
• Operating temperature -40...90°C
• Relay series NY
• Contact resistance 30mΩ
• Electrical life 100000 cycles
• Contact material AgNi
• Terminal pitch 7.62mm
• Contact plating gold-plated

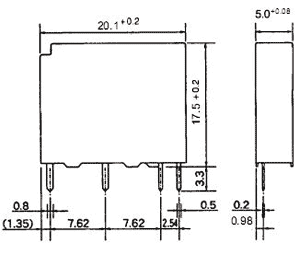

• Dimensions see

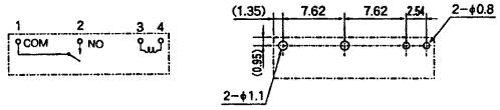

• Output configuration see
• Additional information
• Gross weight: 3.607 g
• Manufacturer part number: NY-24W-K

Parametri

FUJITSU
DC24V
SPST-NO
5A/250VAC
5A/30VDC
uz saslēgšanu
monostabilais
1

Papildu dokumentācija
