Apraksts

• Manufacturer ZETTLER
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• Contact current max. 80A
• DC contacts rating @R(at resistive load) 80A / 14V DC
• Relay variant automotive
• Coil resistance 320Ω
• Contact material AgSnO2
• Operating temperature -40...85°C

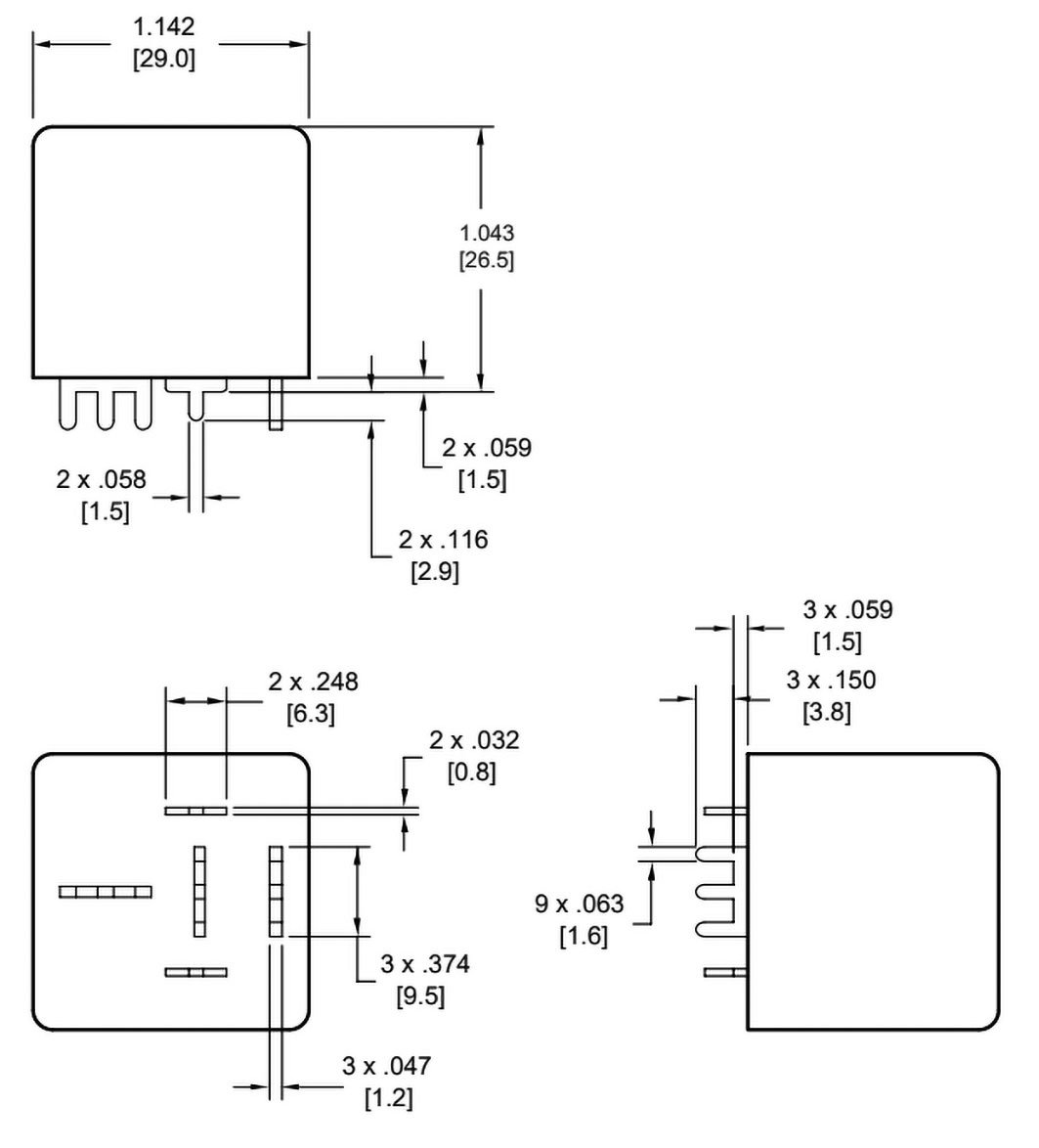

• Body dimensions 29x29x26.5mm

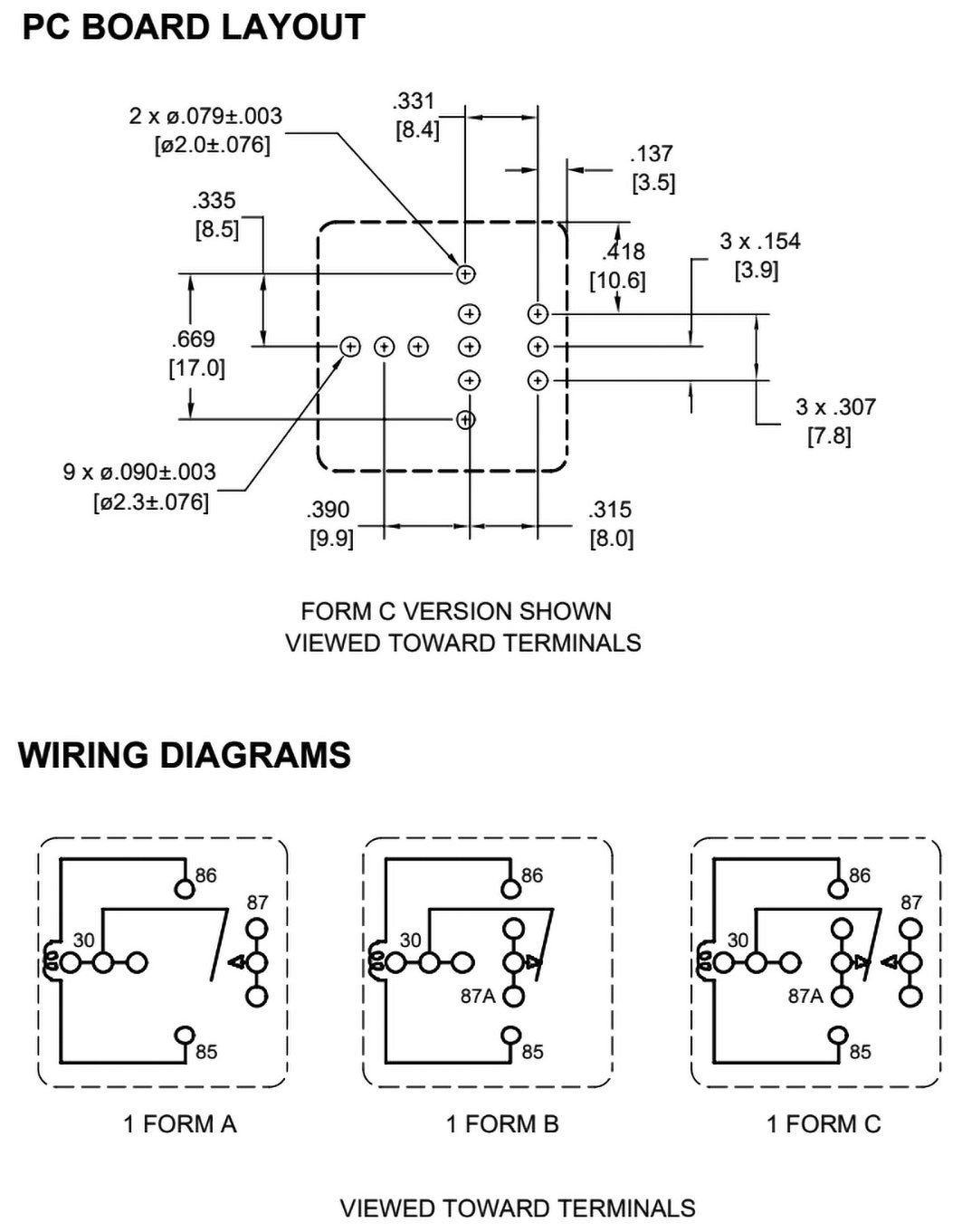

• Mounting PCB
• Coil power consumption 760mW
• Relay series AZ983
• Contact resistance 50mΩ
• Switched voltage max. 28V DC

Parametri

ZETTLER
DC24V
SPST-NO
60A/14VDC
uz saslēgšanu
monostabilais
1

Papildu dokumentācija
