Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Contacts configuration
• Rated coil voltage 24V DC
• Contact current max. 6A
• AC contacts rating @R(at resistive load) 6A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 6A / 30V DC
• at resistive load
• Relay series RE
• Switched voltage max. 300V DC, max. 400V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2,88kΩ
• Coil voltage min. 16,8V DC
• Operate time 10ms
• Body dimensions 20x10,6x10mm
• Release time 5ms
• Coil power consumption 200mW
• IP rating IP67
• Mechanical durability 300000000 cykli
• Operating temperature -40...70°C
• Contact material AgNi 90/10

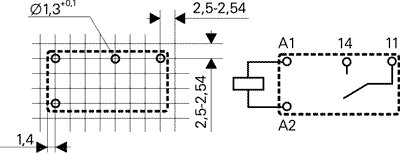

• Terminal pitch 7,62mm
• Masa bruto4.92 g

Parametri

TE Connectivity
DC24V
SPST-NO
6A/250VAC
6A/30VDC
uz saslēgšanu
monostabilais
1

Papildu dokumentācija
