Apraksts

• Manufacturer OMRON
• Relay type electromagnetic
• Contacts configuration SPST-NO + SPST-NC
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 5 A / 250 VAC
• DC contacts rating
• (at resistance load) 5 A / 30 VDC
• Contact current max. 5A
• Switched voltage max 380V AC, max 125V DC
• Relay variant miniature
• Mounting PCB, socket
• Coil resistance 1.92kΩ
• Operate time 10ms

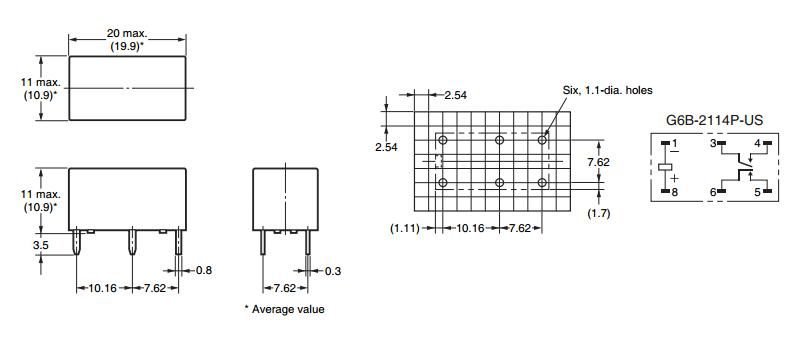

• Body dimensions 20 x 10 x 10mm
• Release time 10ms
• Operating temperature -25...70°C
• Relay series G6B
• Contact resistance 30mΩ
• Terminal pitch 7.62mm
• Coil current 12.5mA

Parametri

OMRON
DC24V
SPST-NO+SPST-NC
5A/250VAC
5A/30VDC
uz saslēgšanu/atslēgšanu
monostabilais
2
