Apraksts

• Manufacturer FINDER
• Relay type electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 48V AC
• AC contacts rating
• (at resistance load) 8 A / 250 VAC
• DC contacts rating
• (at resistance load) 8 A / 30 VDC
• Contact current max. 15A
• Switched voltage max 220V DC, max 400V AC
• Relay variant miniature
• Mounting PCB, socket
• Coil resistance 1.35kΩ

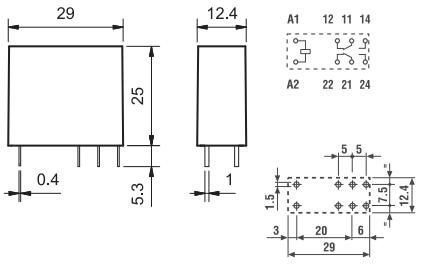

• Body dimensions 29 x 12.4 x 25mm
• Coil power consumption 1.2VA
• Operating temperature -40...85°C

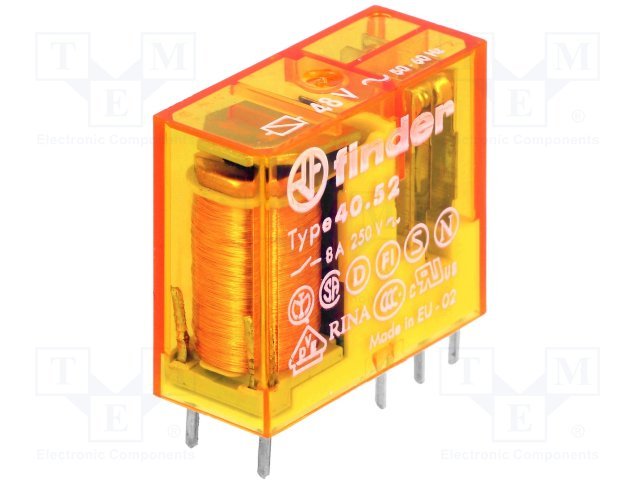

• Relay series 40.52
• Contact material AgNi
• Terminal pitch 5mm
• Coil current 21mA

Parametri

FINDER
AC48V
DPDT
2x8A/250VAC
2x8A/30VDC
uz pārslēgšanu
monostabilais
2
