Apraksts

• Manufacturer FINDER
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 48V AC
• AC contacts rating
• (at resistance load) 16 A / 250 VAC
• DC contacts rating
• (at resistance load) 16 A / 30 VDC
• Contact current max. 30A
• Switched voltage max 220V DC, max 400V AC
• Relay variant miniature
• Mounting PCB, socket
• Coil resistance 1350Ω

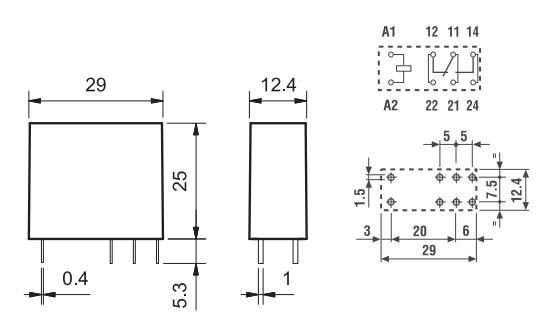

• Body dimensions 29 x 12.4 x 25mm
• Coil power consumption 1.2VA
• Operating temperature -40...85°C
• Relay series 40.61
• Contact material AgNi
• Terminal pitch 5mm
• Coil current 21mA

Parametri

FINDER
AC48V
SPDT
16A/250VAC
16A/30VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
