Apraksts

• Manufacturer OMRON OCB
• Type of relay electromagnetic
• Contacts configuration  DPDT
• Rated coil voltage 48V DC
• AC contacts rating @R  5A / 250V AC
• DC contacts rating @R  5A / 30V DC
• Contact current max. 5A
• Switched voltage max. 125V DC,  max. 380V AC
• Relay variant miniature,  monostable
• Mounting PCB
• Coil resistance 4.17kΩ
• Operate time 15ms
• Body dimensions 29x13x25.5mm
• Release time 5ms
• Operating temperature -40...70°C
• Relay series G2R
• Contact resistance 50mΩ

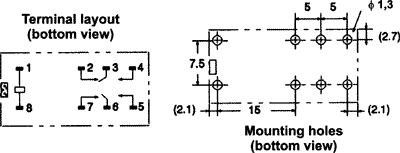

• Terminal pitch 5mm
• Coil current 11.5mA
• Related items PODST-3
• Enclosure description standard seal
• Leads for PCB
• Additional information
• Gross weight: 16.75 g
• Manufacturer part number: G2R-2 48VDC

Parametri

OMRON
DC48V
DPDT
2x5A/250VAC
5A/30VDC
uz pārslēgšanu
monostabilais
2
