Apraksts

• Manufacturer Recoy/RAYEX ELECTRONICS
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 48V DC
• AC contacts rating @R  10A / 120V AC
• DC contacts rating @R  10A / 24V DC
• Contact current max. 10A
• Switched voltage max. 100V DC,  max. 240V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 4.6kΩ
• Operate time 10ms

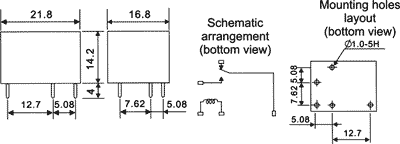

• Body dimensions 21.8x16.8x14.2mm
• Release time 10ms
• Coil power consumption 450mW
• Operating temperature -25...60°C
• Weight 10g
• Relay series LT
• Contact resistance 100mΩ
• Contact material AgCdO
• Terminal pitch 5mm
• Coil current 10.4mA
• Additional information
• Gross weight: 9.16 g
• Manufacturer part number: LT-48G

Parametri

RAYEX ELECTRONICS
DC48V
SPDT
10A/120VAC
10A/24VDC
uz pārslēgšanu
monostabilais
1
