Apraksts

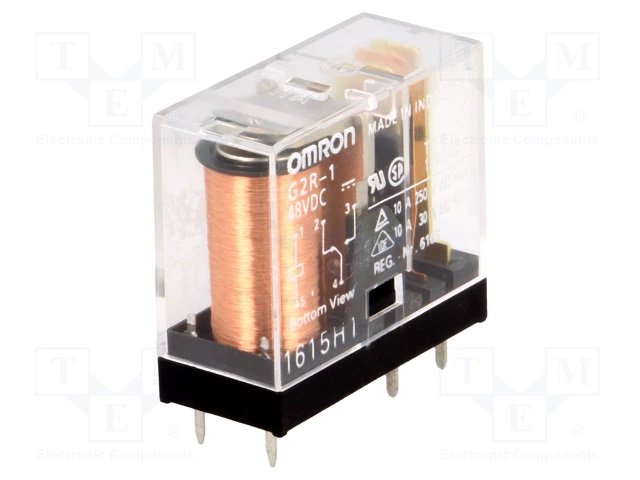

• Manufacturer OMRON OCB
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 48V DC
• Contact current max. 10A
• AC contacts rating @R(at resistive load) 10A / 250V AC
• DC contacts rating @R(at resistive load) 10A / 30V DC
• Switched voltage max. 125V DC, max. 380V AC
• Relay variant miniature, monostable
• Mounting PCB
• Coil resistance 4170Ω
• Operate time 15ms

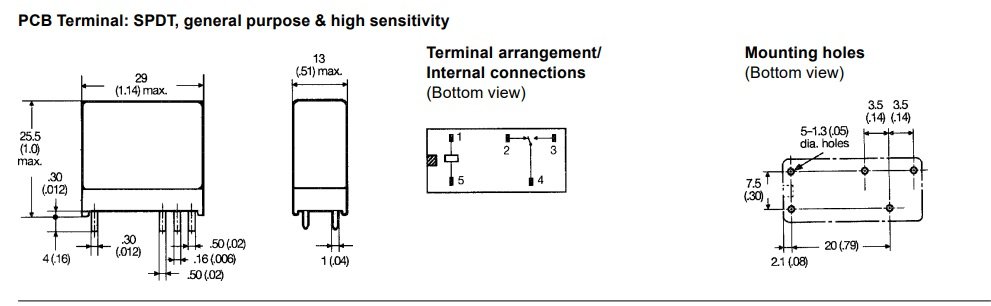

• Body dimensions 29x13x25.5mm
• Release time 5ms
• Operating temperature -40...70°C
• Relay series G2R
• Contact resistance 30mΩ
• Terminal pitch 3.5mm
• Coil current 11.5mA
• Related items PODST-1
• Enclosure description standard seal
• Leads for PCB

Parametri

OMRON
DC48V
SPDT
10A/250VAC
10A/30VDC
uz pārslēgšanu
monostabilais
1
