Apraksts

• Manufacturer FINDER
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 48V DC
• AC contacts rating @R
• (at resistance load) 10 A / 250 VAC
• DC contacts rating @R
• (at resistance load) 10 A / 30 VDC
• Contact current max. 15A
• Switched voltage max 250V AC, max 220V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 6400Ω
• Coil voltage min. 36V DC
• Coil voltage max. 62.4V DC

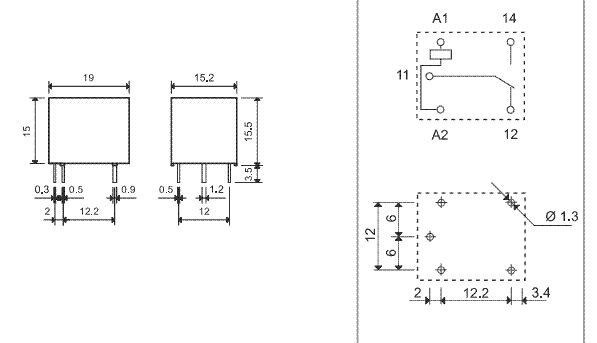

• Body dimensions 19 x 15.5 x 15.5mm
• Coil power consumption 400mW
• Operating temperature -40...85°C
• Relay series 36.11
• Contact material AgSnO2
• Terminal pitch 2mm4011

Parametri

FINDER
DC48V
SPDT
10A/250VAC
10A/30VDC
uz pārslēgšanu
monostabilais
1
