Apraksts

• Manufacturer Recoy/RAYEX ELECTRONICS
• Type of relay electromagnetic
• Contacts configuration SPDT
• Contacts configuration
• Rated coil voltage 48V DC
• Contact current max. 12A
• AC contacts rating @R(at resistive load) 12A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 12A / 30V DC
• at resistive load
• Switched voltage max. 30V DC, max. 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 4.4kΩ
• Operate time 15ms

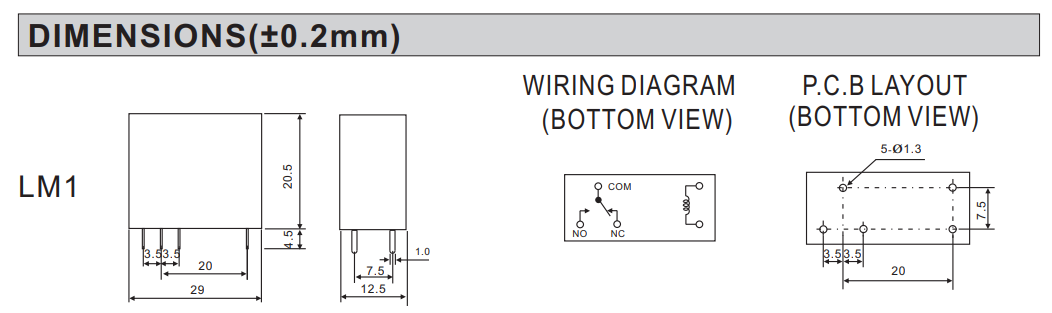

• Body dimensions 29x20.5x12.5mm
• Release time 10ms
• Coil power consumption 530mW
• Operating temperature -40...80°C
• Relay series LM1
• Contact resistance 100mΩ
• Contact material AgCdO
• Terminal pitch 3.5mm
• Coil current 10.9mA

Parametri

DC48V
SPDT
12A/250VAC
uz pārslēgšanu
monostabilais
1
RAYEX ELECTRONICS
12A/30VDC
