Apraksts

• Manufacturer OMRON OCB
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 48V DC
• Contact current max. 16A
• AC contacts rating @R(at resistive load) 16A / 250V AC
• DC contacts rating @R(at resistive load) 16A / 30V DC
• Switched voltage max. 125V DC, max. 380V AC
• Relay variant miniature, monostable
• Mounting PCB
• Coil resistance 4.17kΩ
• Operate time 15ms

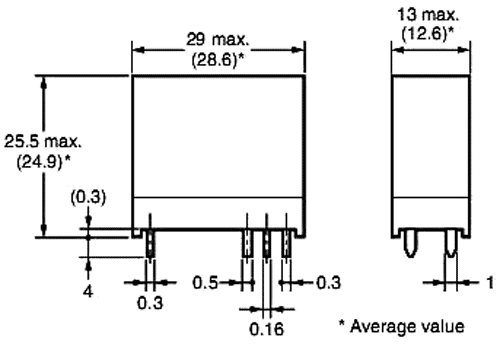

• Body dimensions 29x13x25.5mm
• Release time 10ms
• Operating temperature -40...70°C
• Relay series G2R
• Contact resistance 30mΩ

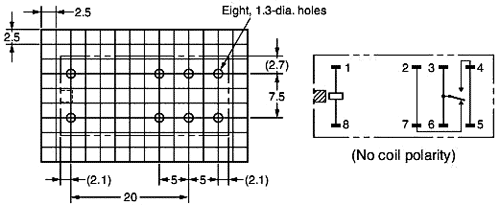

• Terminal pitch 5mm
• Coil current 11.5mA
• Enclosure description standard seal
• Leads for PCB
• Related items PODST-3

Parametri

DC48V
16A/250VAC
uz saslēgšanu
monostabilais
1
OMRON
SPDT
16A/30VDC

Papildu dokumentācija
