Apraksts

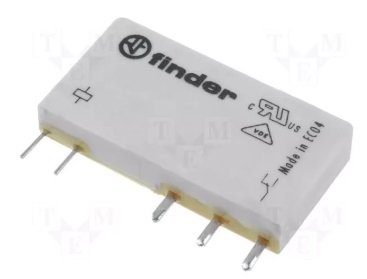

• Manufacturer FINDER
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 48V DC
• Contact current max. 6A
• AC contacts rating @R(at resistive load) 6A / 250V AC
• DC contacts rating @R(at resistive load) 6A / 30V DC
• Manufacturer series 34.51
• Switched voltage max. 220V DC, max. 250V AC
• Relay variant interface
• Mounting PCB, socket
• Coil resistance 12,3kΩ
• Coil voltage min. 33,6V DC
• Coil voltage max. 72V DC

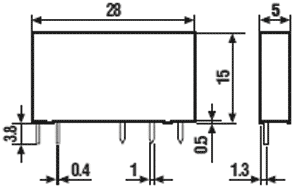

• Body dimensions 28x5x15mm
• Coil power consumption 170mW
• Mechanical durability 1000000 cykli
• Contact material AgNi

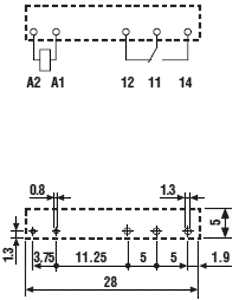

• Terminal pitch 5mm
• Coil current 3,9mA
• Related items 93.11, 93.51.3.125, 93.51.3.240, 93.01.7.024, 93.01.7.060
• Operating temperature -40...85°C
• Masa bruto4.53 g

Parametri

FINDER
DC48V
SPDT
6A/250VAC
6A/30VDC
uz pārslēgšanu
monostabilais
1
