Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPDT
• Contacts configuration
• Rated coil voltage 48V DC
• Contact current max. 8A
• AC contacts rating @R(at resistive load) 8A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 8A / 24V DC
• at resistive load
• Switched voltage max. 120V DC, max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 8kΩ
• Coil voltage min. 33.6V DC
• Coil voltage max. 102V DC
• Operate time 10ms
• Body dimensions 30x10x16.2mm
• Release time 5ms
• Coil power consumption 300mW
• IP rating IP67
• Mechanical durability 20000000 cycles
• Operating temperature -40...80°C
• Relay series RM96-1P
• Contact resistance 100mΩ
• Contact material AgSnO2
• Terminal pitch 3.2mm
• Height 16.2mm
• OEM number 852846
• Number of pins 5
• Show similar products (6908)

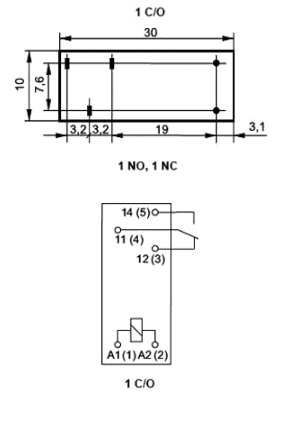

• DimensionsSee
• Gross weight10.5 g

Parametri

RELPOL
DC48V
SPDT
8A/250VAC
8A/24VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
