Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 48V DC
• Contact current max. 16A
• AC contacts rating @R(at resistive load) 16A / 250V AC
• DC contacts rating @R(at resistive load) 16A / 24V DC
• Switched voltage max. 300V DC, max. 400V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 5.73kΩ
• Coil voltage min. 33.5V DC

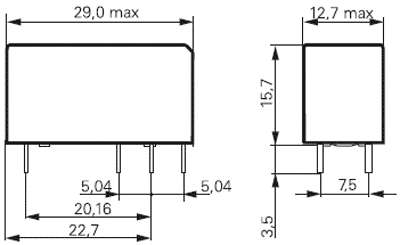

• Body dimensions 29x12.7x15.7mm
• Coil power consumption 400mW
• Mechanical durability 1000000 cycles
• Operating temperature -40...85°C
• Relay series RZ
• Contact material AgNi 90/10

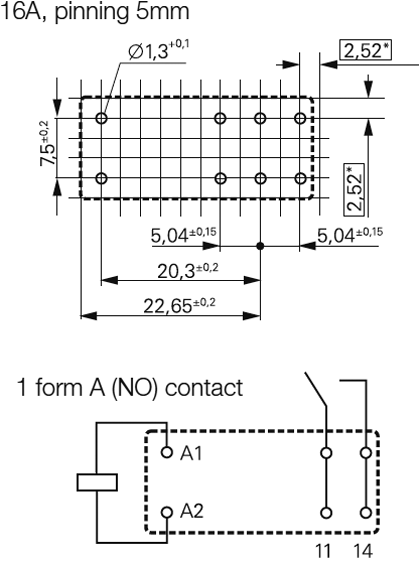

• Terminal pitch 5mm

Parametri

TE Connectivity
DC48V
SPST-NO
16A/250VAC
16A/24VDC
uz saslēgšanu
monostabilais
1
