Apraksts

• Manufacturer Recoy/RAYEX ELECTRONICS
• Type of relay electromagnetic
• Contacts configuration  DPDT
• Rated coil voltage 5V DC
• AC contacts rating @R  5A / 250V AC
• DC contacts rating @R  5A / 30V DC
• Contact current max. 5A
• Switched voltage max. 30V DC,  max. 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 47Ω
• Operate time 15ms

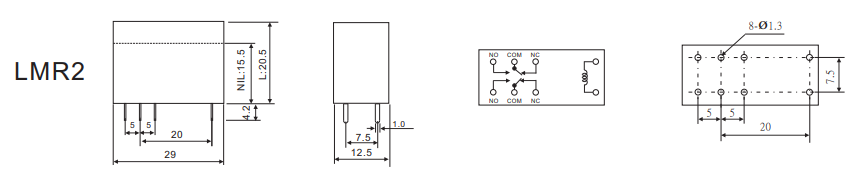

• Body dimensions 29x15.5x12.5mm
• Release time 10ms
• Coil power consumption 530mW
• Operating temperature -40...80°C
• Relay series LMR2
• Contact resistance 100mΩ
• Contact material AgCdO
• Terminal pitch 5mm
• Coil current 106.4mA
• Additional information
• Gross weight: 11.6 g
• Manufacturer part number: LMR2-5D

Parametri

RAYEX ELECTRONICS
DC5V
DPDT
2x5A/250VAC
2x5A/30VDC
uz pārslēgšanu
monostabilais
2

Papildu dokumentācija
