Apraksts

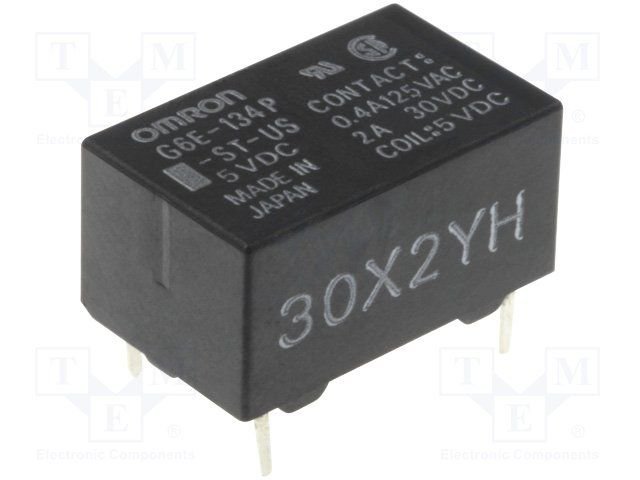

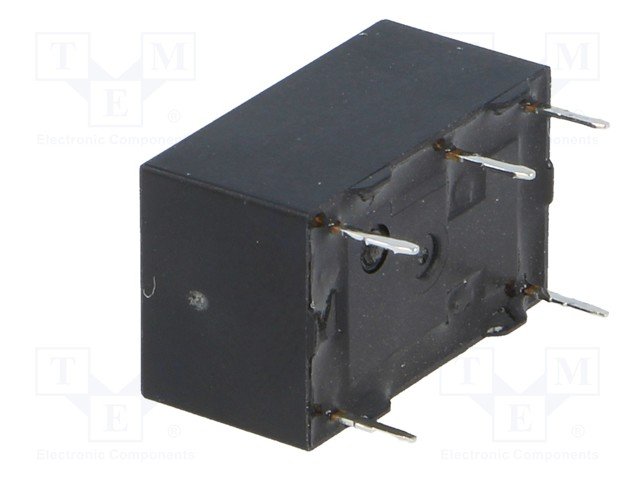

• Manufacturer OMRON
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 5V DC
• AC contacts rating
• (at resistance load) 0.4 A / 125 VAC
• DC contacts rating
• (at resistance load) 2 A / 30 VDC
• Contact current max. 3A
• Switched voltage max 250V AC, max 220V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 125Ω
• Operate time 5ms

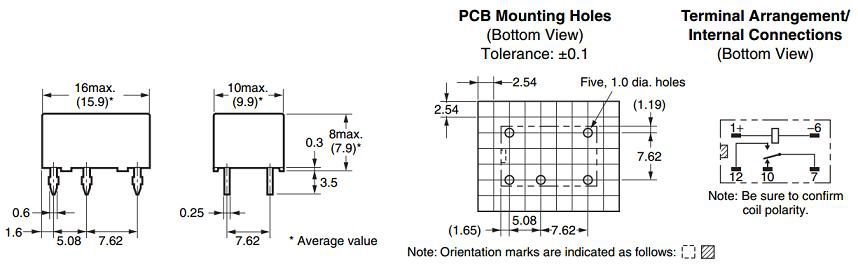

• Body dimensions 16 x 10 x 8mm
• Release time 5ms
• Coil power consumption 200mW
• Operating temperature -40...70°C
• Relay series G6E
• Contact resistance 50mΩ
• Terminal pitch 5.08mm
• Coil current 40mA

Parametri

OMRON
DC5V
SPDT
0.4A/125VAC
2A/30VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
