Apraksts

• Manufacturer Recoy/RAYEX ELECTRONICS
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 5V DC
• AC contacts rating @R  10A / 120V AC
• DC contacts rating @R  10A / 24V DC
• Contact current max. 10A
• Switched voltage max. 100V DC,  max. 240V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 70Ω
• Operate time 8ms

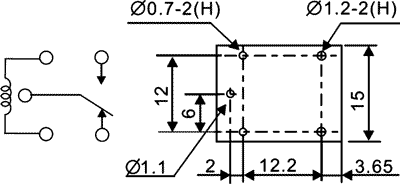

• Body dimensions 19.5x15.8x15mm
• Release time 8ms
• Coil power consumption 360mW
• Operating temperature -25...80°C
• Relay series LEG
• Contact resistance 100mΩ
• Terminal pitch 2mm
• Coil current 72mA
• Additional information
• Gross weight: 8.9 g
• Manufacturer part number: LEG-5

Parametri

RAYEX ELECTRONICS
DC5V
SPDT
10A/120VAC
10A/24VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
