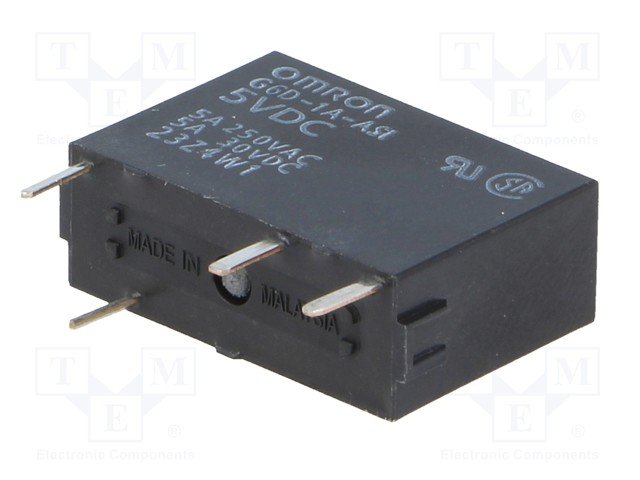

Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 5V DC
• AC contacts rating
• (at resistance load) 5 A / 250 VAC
• DC contacts rating
• (at resistance load) 5 A / 30 VDC
• Contact current max. 5A
• Switched voltage max 250V AC, max 30V DC
• Relay variant miniature
• Mounting PCB, socket
• Coil resistance 125Ω;
• Operate time 10ms

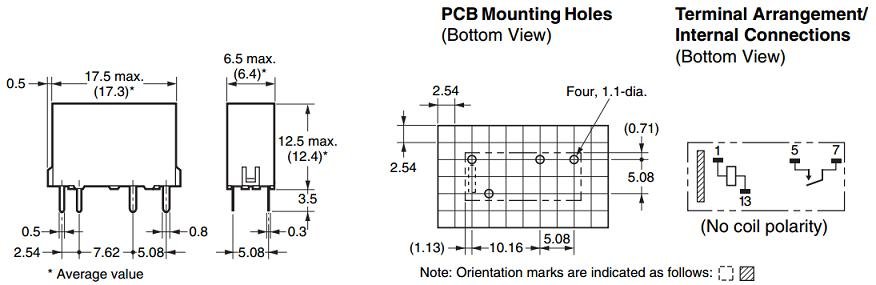

• Body dimensions 17.5 x 6.5 x 12.5mm
• Release time 5ms
• Coil power consumption 200mW
• Operating temperature -25...70°C
• Relay series G6D
• Contact resistance 100mΩ;
• Contacts pitch 5.08mm
• Coil current 40mA

Parametri

OMRON
DC5V
SPST-NO
5A/250VAC
5A/30VDC
uz saslēgšanu
monostabilais
1

Papildu dokumentācija
