Apraksts

• Manufacturer OMRON
• Relay type electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 6V DC
• AC contacts rating
• (at resistance load) 5 A / 250 VAC
• DC contacts rating
• (at resistance load) 5 A / 30 VDC
• Contact current max. 5A
• Switched voltage max 380V AC, max 125V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 68Ω
• Operate time 15ms
• Body dimensions 29 x 13 x 25.5mm
• Release time 5ms
• Operating temperature -40...70°C
• Relay series G2R
• Contact resistance 50mΩ

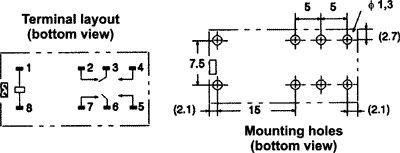

• Terminal pitch 5mm
• Coil current 88.2mA
• Enclosure description standard seal
• Leads for PCB
• Associated items PODST-3

Parametri

OMRON
DC6V
DPDT
2x5A/30VDC
uz pārslēgšanu
monostabilais
2
2x5A/250VAC
