Apraksts

• Manufacturer HONGFA RELAY
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Contacts configuration
• Rated coil voltage 6V DC
• Contact current max. 20A
• AC contacts rating @R(at resistive load) 20A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 20A / 24V DC
• at resistive load
• Switched voltage max. 300V DC, max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 90Ω
• Coil voltage min. 4,2V DC
• Coil voltage max. 9V DC
• Operate time 15ms

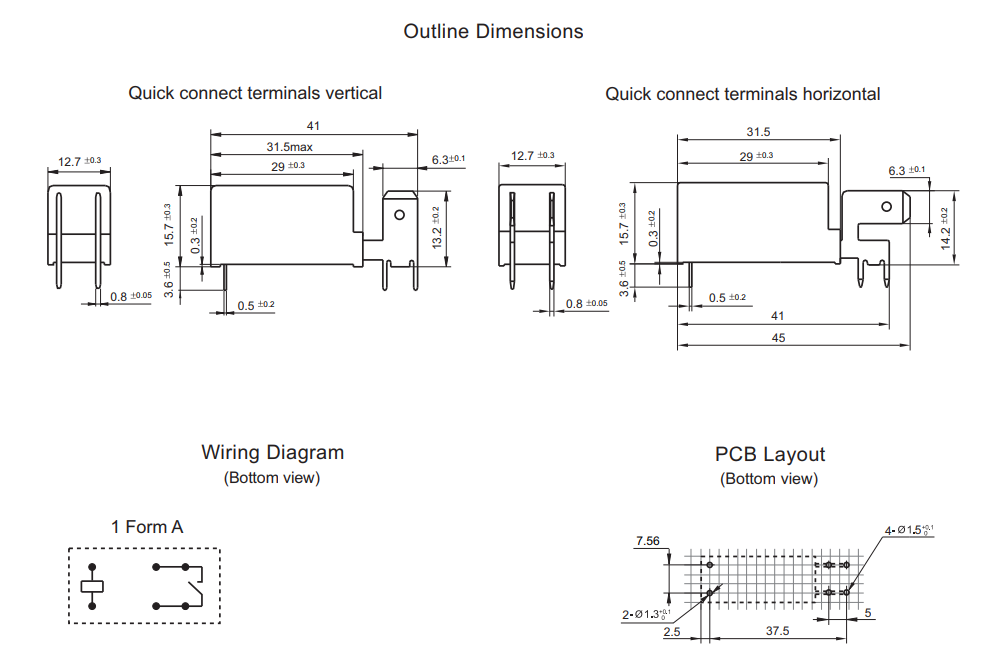

• Body dimensions 45x15,7x12,7mm
• Release time 8ms
• Coil power consumption 400mW
• Operating temperature -40...125°C
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 5mm
• Masa bruto15.11 g

Parametri

HONGFA RELAY
DC6V
SPST-NO
20A/250VAC
20A/24VDC
uz saslēgšanu
monostabilais
1

Papildu dokumentācija
