Apraksts

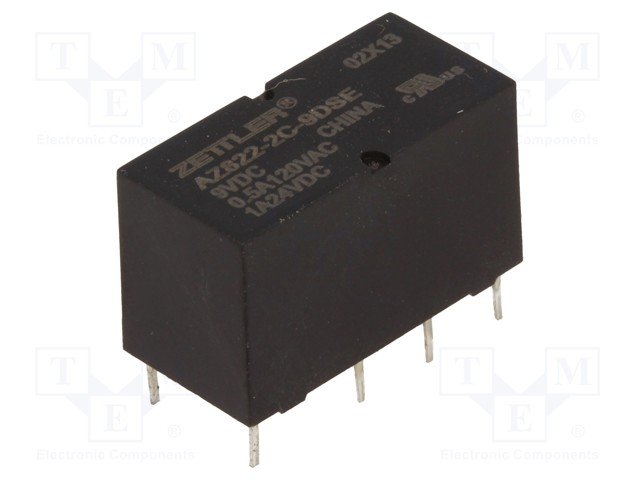

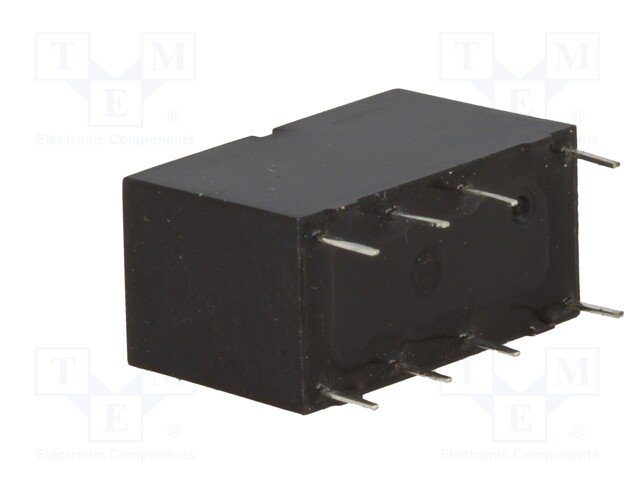

• Manufacturer ZETTLER
• Relay type electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 9V DC
• AC contacts rating
• (at resistance load) 0.5 A / 120 VAC
• DC contacts rating
• (at resistance load) 1 A / 24 VDC
• Contact current max. 2A
• Switched voltage max 250V AC, max 220V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 540Ω
• Coil voltage min. 6.3V DC
• Coil voltage max. 22.5V DC
• Operate time 5ms

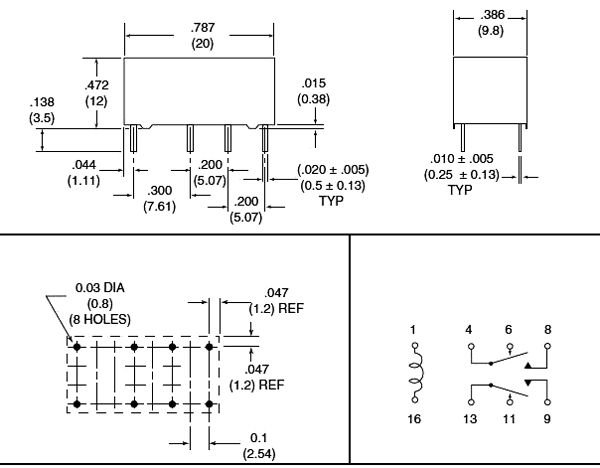

• Body dimensions 20 x 9.8 x 12mm
• Release time 2ms
• Coil power consumption 74mW
• Sealing IP64
• Operating temperature -55...90°C
• Weight 4.5g
• Relay series AZ822
• Contact resistance 50mΩ
• Contacts pitch 5mm

Parametri

ZETTLER
DC9V
DPDT
2x0.5A/120VAC
1A/24VDC
uz pārslēgšanu
monostabilais
2
