Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 9V DC
• AC contacts rating @R
• (at resistive load) 8A / 250V AC
• DC contacts rating @R
• (at resistive load) 8A / 24V DC
• Contact current max. 8A
• Switched voltage max. 250V DC, max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 200Ω
• Coil voltage min. 6.3V DC
• Coil voltage max. 22.9V DC
• Operate time 7ms

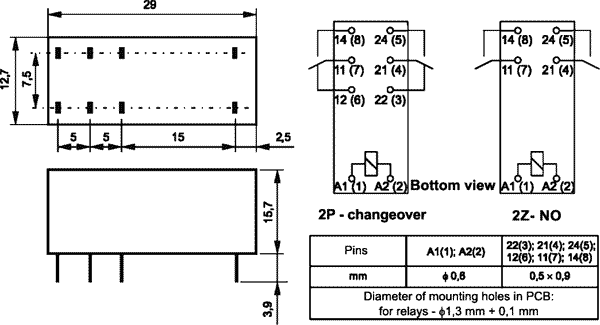

• Body dimensions 29x12.7x15.7mm
• Release time 3ms
• Coil power consumption 480mW
• IP rating IP67
• Mechanical durability 30000000 cycles
• Operating temperature -40...85°C
• Weight 14g
• Relay series RM84
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 5mm
• Height 15.7mm
• Related items GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80
• Number of pins 8
• OEM number 600334
• Body colour white

Parametri

RELPOL
DC9V
DPDT
2x8A/250VAC
2x8A/24VDC
uz pārslēgšanu
monostabilais
2
