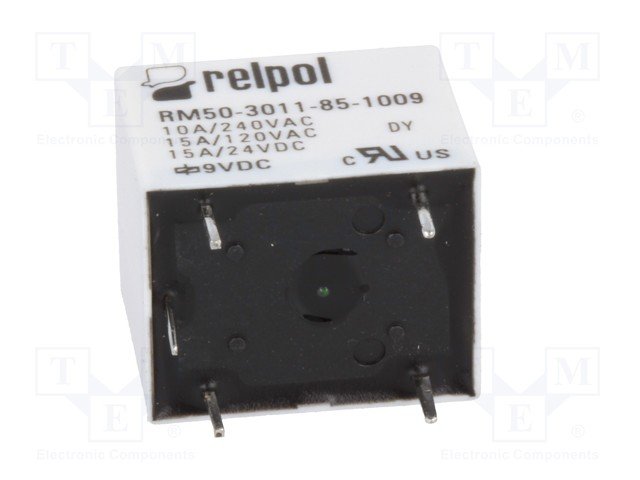

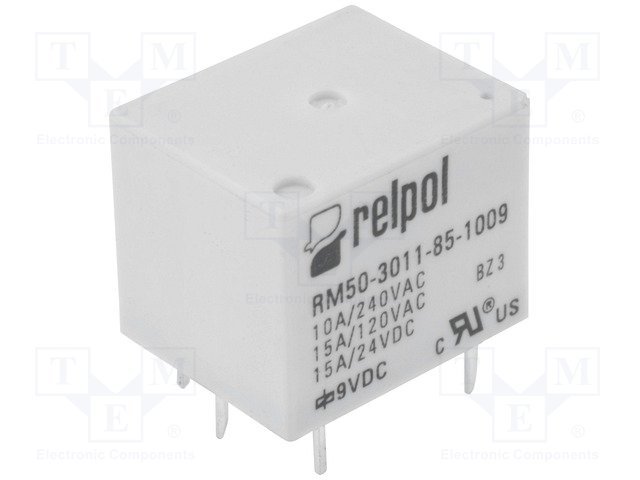

Apraksts

• Manufacturer RELPOL
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 9V DC
• Contact current max. 10A
• Switched voltage max 277V AC, max 30V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 225Ω
• Operate time 10ms

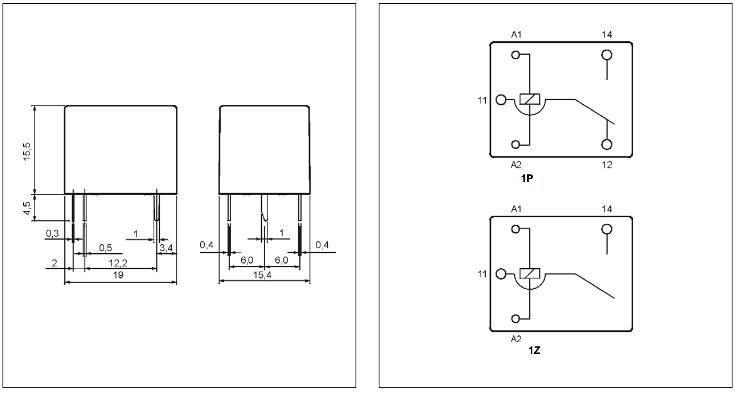

• Body dimensions 19 x 15.4 x 15.5mm
• Release time 5ms
• Coil power consumption 360mW
• Sealing IP64
• Operating temperature -30...55°C
• Relay series RM50
• Contacts pitch 2mm

Parametri

RELPOL
DC9V
SPDT
10A/250VAC
15A/24VDC
uz pārslēgšanu
monostabilais
1
