Apraksts

• Manufacturer Recoy/RAYEX ELECTRONICS
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 9V DC
• Contact current max. 12A
• AC contacts rating @R  12A / 250V AC
• (at resistive load)
• DC contacts rating @R  12A / 30V DC
• (at resistive load)
• Switched voltage max. 30V DC,  max. 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 155Ω
• Operate time 15ms
• Body dimensions 29x12.5x15.5mm
• Release time 10ms
• Coil power consumption 530mW
• Operating temperature -40...80°C
• Relay series LMR1
• Contact resistance 100mΩ
• Contact material AgCdO
• Terminal pitch 3.5mm

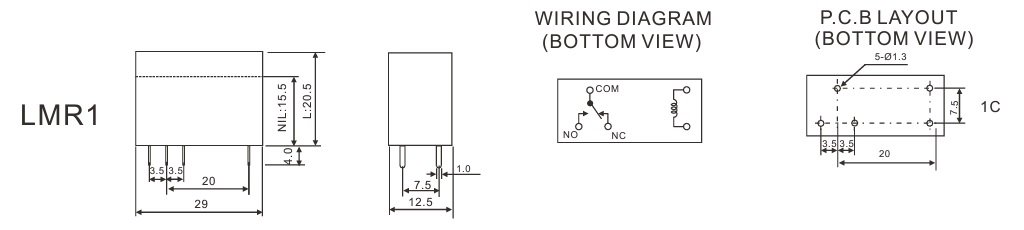

• Output configuration see
• Additional information
• Gross weight: 11.32 g

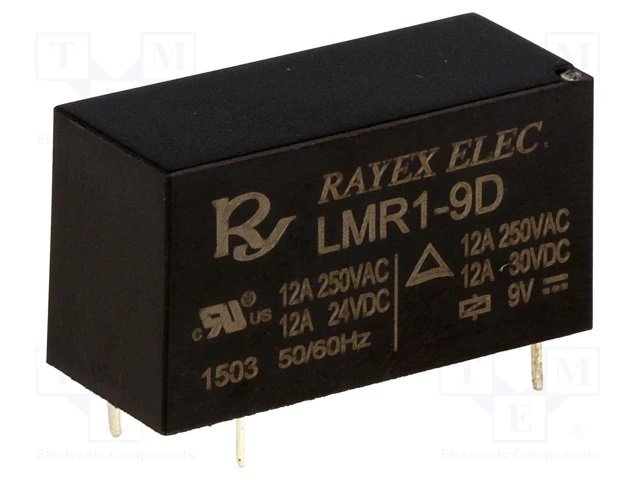

• Manufacturer part number: LMR1-9D

Parametri

RAYEX ELECTRONICS
DC9V
SPDT
12A/250VAC
12A/30VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
