Apraksts

• Manufacturer RELPOL
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 9V DC
• AC contacts rating
• (at resistance load) 16 A / 250 VAC
• DC contacts rating
• (at resistance load) 16 A / 24 VDC
• Contact current max. 16A
• Switched voltage max 300V DC, max 400V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 200Ω
• Coil voltage min. 6.3V DC
• Coil voltage max. 22.9V DC
• Operate time 7ms

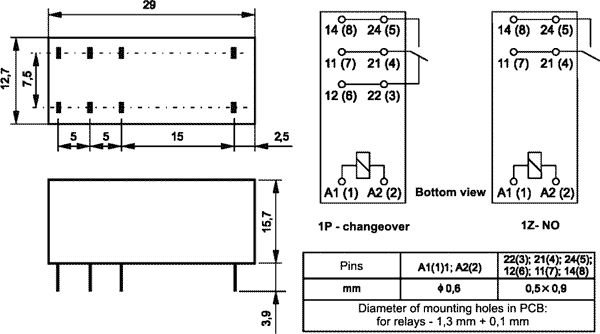

• Body dimensions 29 x 12.7 x 15.7mm
• Release time 3ms
• Coil power consumption 480mW
• Sealing IP67
• Operating temperature -40...85°C
• Relay series RM85
• Contact resistance 100mΩ
• Contacts pitch 5mm

Parametri

RELPOL
DC9V
SPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
