Apraksts

• Manufacturer RAYEX ELECTRONIC
• Relay type electromagnetic

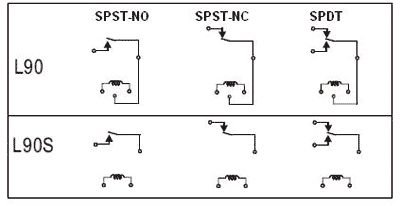

• Contacts configuration SPDT
• Rated coil voltage 9V DC
• Contact current max. 30A
• Relay series L90
• Relay variant sealed, power
• Operating temperature -55...85°C
• Mounting PCB
• Coil resistance 97Ω
• Switched voltage max 240V AC, max 30V DC
• Coil power consumption 900mW
• DC contacts rating
• (at resistance load) 20 A / 30 VDC
• Contact resistance 50mΩ
• Leads for PCB
• AC contacts rating
• (at resistance load) 30 A / 240 VAC
• Operate time 15ms
• Release time 15ms
• Contact material AgCdO
• Mechanical durability 10000000cycles
• Electrical life 100000cycles

Parametri

RAYEX ELECTRONICS
DC9V
SPDT
30A/240VAC
20A/30VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
