Apraksts

• Manufacturer RELPOL
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 9V DC
• AC contacts rating
• (at resistance load) 8 A / 250 VAC
• DC contacts rating
• (at resistance load) 8 A / 24 VDC
• Contact current max. 8A
• Switched voltage max 440V AC, max 120V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 360Ω
• Coil voltage min. 6.3V DC
• Coil voltage max. 22V DC
• Operate time 10ms

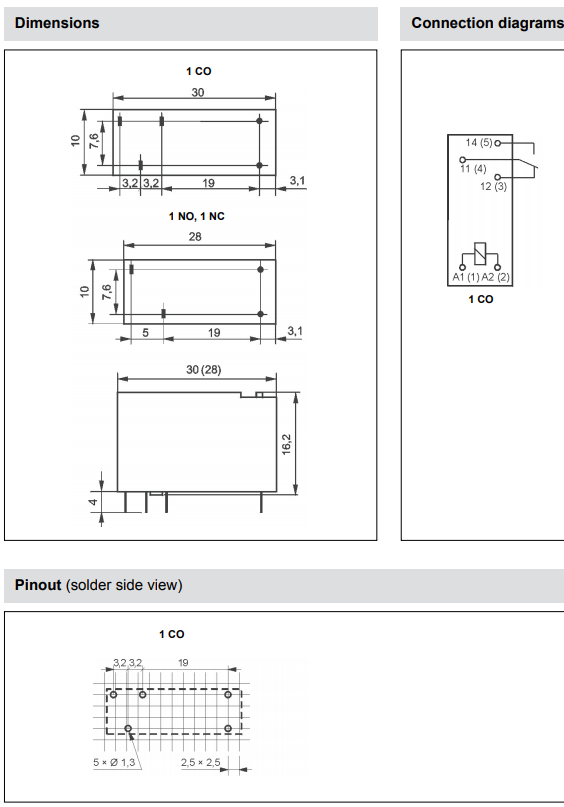

• Body dimensions 28 x 10 x 16.2mm
• Release time 5ms
• Coil power consumption 300mW
• Sealing IP67
• Operating temperature -40...80°C
• Weight 11g
• Relay series RM96
• Contact resistance 100mΩ
• Contact material AgCdO
• Contacts pitch 3.2mm

Parametri

RELPOL
DC9V
SPDT
8A/250VAC
8A/24VDC
uz pārslēgšanu
monostabilais
1
