Apraksts

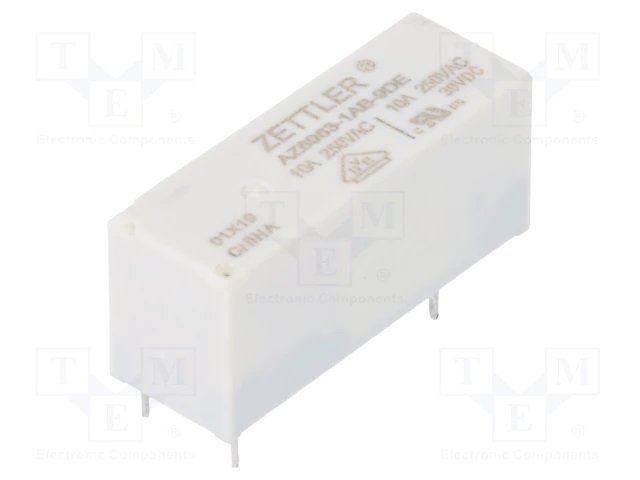

• Manufacturer ZETTLER
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 9V DC
• Contact current max. 10A
• AC contacts rating @R(at resistive load) 10A / 250V AC
• DC contacts rating @R(at resistive load) 10A / 30V DC
• Switched voltage max. 240V DC, max. 440V AC
• Relay variant miniature

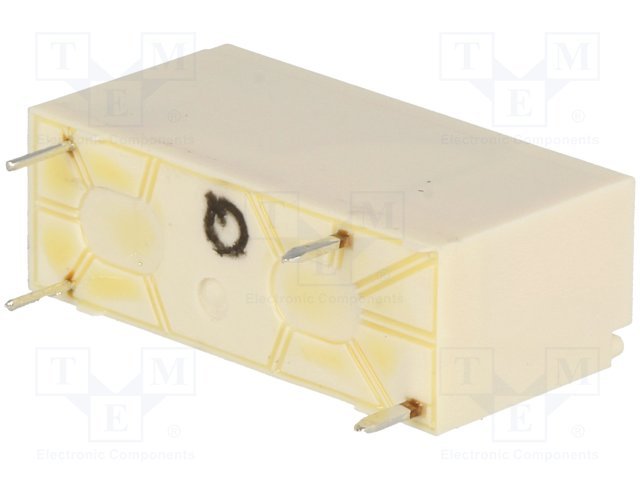

• Mounting PCB
• Coil resistance 360Ω
• Coil voltage min. 6.3V DC
• Coil voltage max. 20.8V DC
• Operate time 7ms
• Body dimensions 28.8x10.1x12.5mm
• Release time 3ms
• Coil power consumption 120mW
• Operating temperature -40...85°C
• Relay series AZ6963
• Contact resistance 100mΩ

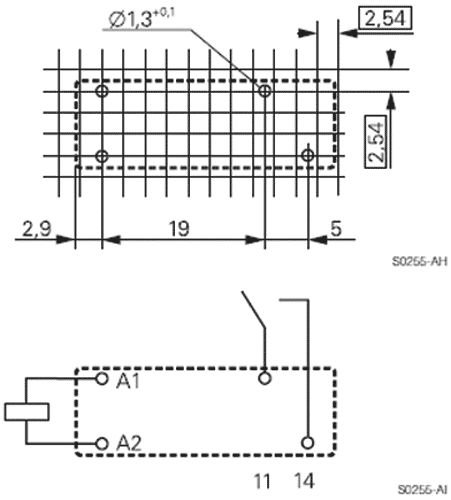

• Terminal pitch 5mm

Parametri

DC9V
SPST-NO
uz saslēgšanu
monostabilais
1
ZETTLER
10A/240VAC
10A/30VDC

Papildu dokumentācija
