Apraksts

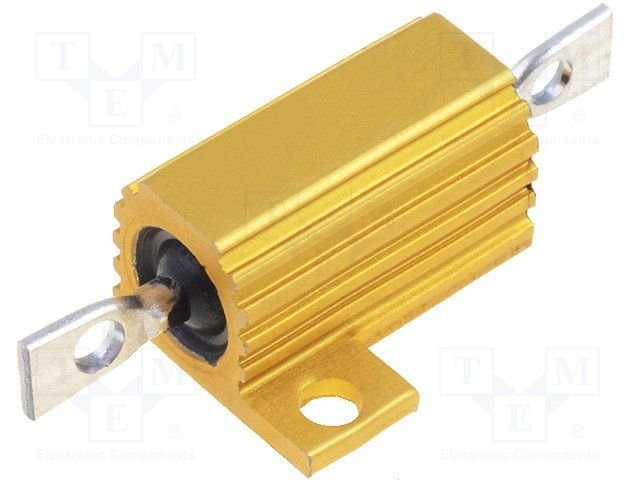

• Manufacturer ARCOL
• Type of resistor wire-wound
• Kind of resistor with heatsink
• Mounting screw
• Resistance 4.7kΩ
• Power 10W
• Tolerance ±5%
• Max. operating voltage 160V
• Body dimensions 15.9x16.5x8.8mm
• Temperature coefficient 25ppm/°C
• Resistor features needs additional heatsink
• Leads for soldering
• Mounting holes pitch 11.3 x 12.4mm
• Power without heatsink 5W Additional information
• Gross weight: 2.87 g

Parametri

4K7
10W
