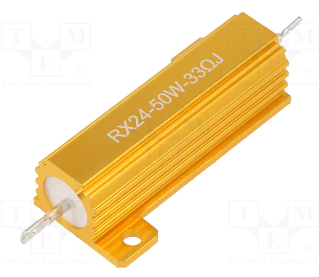

33R 50W, ±5%, Rezistors ar radiatoru, 49.1x29.7x14.8mm
33R 50W, ±5%, Rezistors ar radiatoru, 49.1x29.7x14.8mm

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

33R 50W, ±5%, Rezistors ar radiatoru, 49.1x29.7x14.8mm

Cena: 3.18 €
00005622
AHP50W-33RJ
10
  • Apraksts

    • Specification
    • Resistor type wire-wound with heatsink
    • Mounting screwed
    • Resistance 33Ω;
    • Power 50W
    • Tolerance ±5%
    • Max. operating voltage 1250V
    • Body dimensions 49.1 x 29.7 x 14.8mm
    • Temperature coefficient 100ppm/°C
    • Resistor characteristics needs additional heatsink
    • Leads for soldering
    • Mounting holes pitch 39.7 x 21.4mm
    • Power without heatsink 14W

    Parametri

    33R
    50W
