Apraksts

• Specification

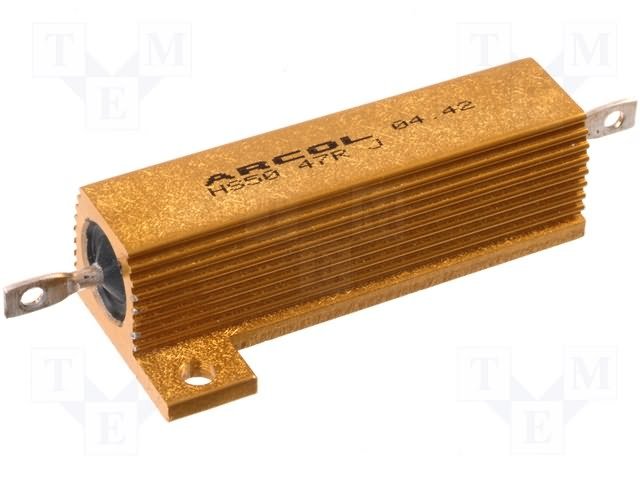

• Resistor type wire-wound with heatsink
• Mounting screwed
• Resistance 47Ω;
• Power 50W
• Tolerance ±5%
• Max. operating voltage 1250V
• Body dimensions 49.1 x 29.7 x 14.8mm
• Temperature coefficient 100ppm/°C
• Resistor characteristics needs additional heatsink
• Leads for soldering
• Mounting holes pitch 39.7 x 21.4mm
• Power without heatsink 14W

Parametri

47R
50W
