Apraksts

• Manufacturer SR PASSIVES
• Type of potentiometer mounting
• Kind of potentiometer vertical,  multiturn
• Resistance  1kΩ
• Power 250mW
• Mounting SMD
• Tolerance ±10%
• Temperature coefficient 100ppm/°C
• Characteristics linear
• Track material cermet
• Operating temperature -55...125°C
• Body dimensions 6.8x6.8x4.6mm
• Number of electrical turns 12
• Mechanical durability 200 cycles

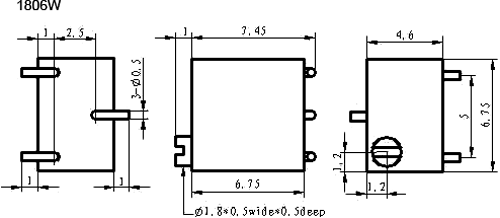

• Dimensions see
• Additional information
• Gross weight: 0.335 g
• Manufacturer part number: 1806WSMD-1K

Parametri

1K
250mW
SMD
Daudzapgriezienu

Papildu dokumentācija
