Apraksts

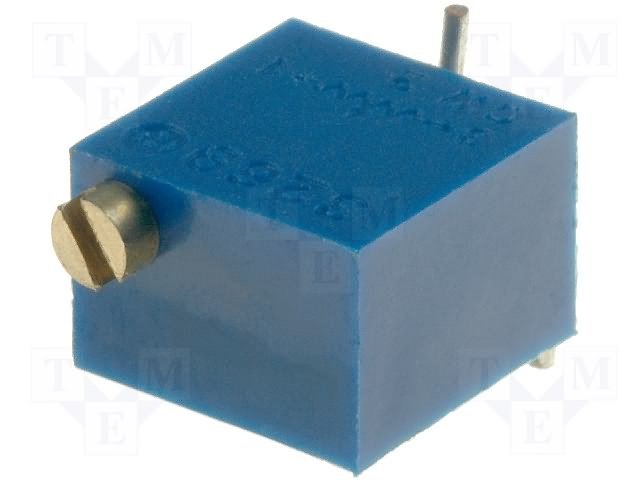

• Potentiometer type mounting, multiturn, vertical
• Resistance 20kΩ;
• Power 250mW
• Mounting SMD
• Tolerance ±10%
• Temperature coefficient 100ppm/°C
• Characteristics linear
• Track material cermet
• Operating temperature -55...125°C

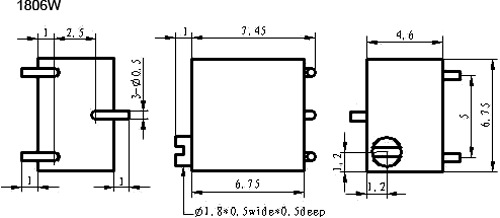

• Body dimensions 6.8 x 6.8 x 4.6mm
• Number of electrical turns 12
• Mechanical durability 200cycles

Parametri

20K
250mW
SMD
Daudzapgriezienu

Papildu dokumentācija
