Apraksts

• Manufacturer TOCOS
• Type of potentiometer mounting
• Kind of potentiometer single turn
• Resistance 10kΩ
• Power 0.5W
• Tolerance ±10%
• Characteristics linear
• Mechanical rotation angle 250°
• Operating temperature -55...125°C
• Mounting THT
• Terminal pitch 5x2.5mm
• Track material cermet
• Electrical rotation angle 220°

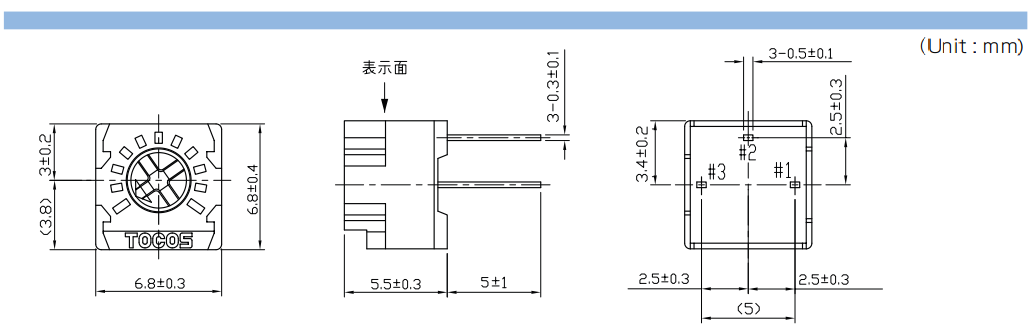

• Body dimensions 6.8x6.8x5.5mm
• Temperature coefficient 100ppm/°C

Parametri

10K
THT
Vienapgriezienu
500mW

Papildu dokumentācija
