Apraksts

• Manufacturer ACP
• Potentiometer type mounting
• Potentiometer kind single turn, horizontal
• Resistance 47kΩ;
• Power 250mW
• Tolerance ±20%
• Characteristics linear
• Potentiometer standard 14mm
• Mechanical rotation angle 265 ±5°
• Torque <2,5Ncm
• Max. operating voltage 250V DC
• Operating temperature -25...70°C
• Mounting THT
• Terminal pitch 12.5x10mm
• Track material carbon
• Electrical rotation angle 245 ±20°

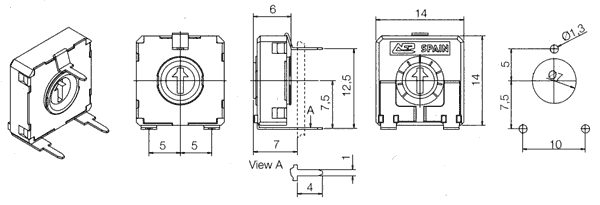

• Body dimensions 14 x 14 x 6mm
• Mechanical durability 1000cycles

Parametri

47K
250mW
THT
Vienapgriezienu

Papildu dokumentācija
