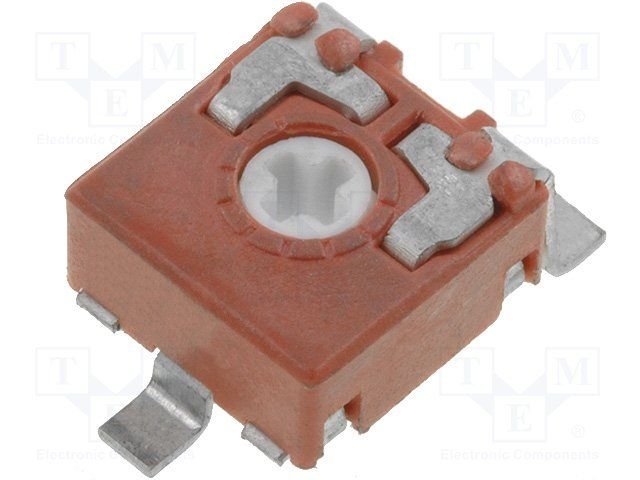

100K SMD pieskaņošais horizontalais rezistors, ±20%, 100VDC, 100mW, 6.5x6.5x3.6mm
100K SMD pieskaņošais horizontalais rezistors, ±20%, 100VDC, 100mW, 6.5x6.5x3.6mm
100K SMD pieskaņošais horizontalais rezistors, ±20%, 100VDC, 100mW, 6.5x6.5x3.6mm
100K SMD pieskaņošais horizontalais rezistors, ±20%, 100VDC, 100mW, 6.5x6.5x3.6mm 100K SMD pieskaņošais horizontalais rezistors, ±20%, 100VDC, 100mW, 6.5x6.5x3.6mm 100K SMD pieskaņošais horizontalais rezistors, ±20%, 100VDC, 100mW, 6.5x6.5x3.6mm

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

100K SMD pieskaņošais horizontalais rezistors, ±20%, 100VDC, 100mW, 6.5x6.5x3.6mm

Cena: 0.28 €
00011925
CA6VSMD-100K
14
  • Apraksts

    • Manufacturer ACP
    • Type of potentiometer mounting
    • Kind of potentiometer single turn
    • Resistance 100kΩ
    • Power 100mW
    • Mounting SMD
    • Tolerance ±25%
    • Characteristics linear

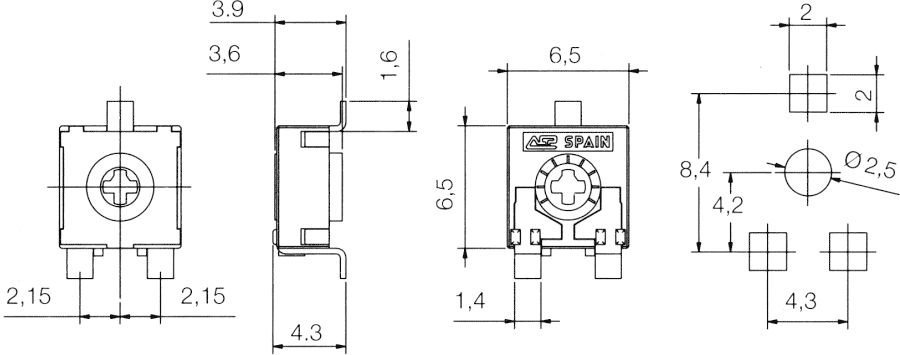

    • Body dimensions 6.5x6.5x3.6mm
    • Operating temperature -25...70°C
    • Track material carbon
    • Electrical rotation angle 215 ±20°
    • Mechanical rotation angle 235 ±10°
    • Torque <2Ncm
    • Potentiometer standard 6mm
    • Max. operating voltage 100V DC
    • Mechanical durability 1000cycles
    • Kind of package bag

    Parametri

    100K
    100mW
    SMD
    Vienapgriezienu
