Apraksts

• Specification
• Potentiometer type mounting, single turn
• Resistance 100Ω;
• Power 100mW
• Mounting SMD
• Tolerance ±25%
• Characteristics linear

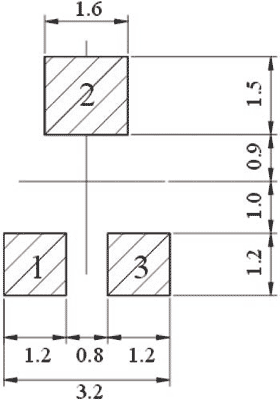

• Body dimensions 3 x 3.5 x 1.55mm
• Operating temperature -55...125°C
• Track material cermet
• Electrical rotation angle 220°
• Torque 0,2...2Ncm
• Max. operating voltage 50V DC

Parametri

100R
100mW
SMD
Vienapgriezienu
