Apraksts

• Manufacturer ACP
• Type of potentiometer mounting
• Kind of potentiometer single turn,  vertical
• Resistance  10kΩ
• Power 250mW
• Tolerance ±20%
• Characteristics linear
• Potentiometer standard 14mm
• Mechanical rotation angle 265 ±5°
• Torque <2,5Ncm
• Max. operating voltage 250V DC
• Operating temperature -25...70°C
• Mounting THT
• Terminal pitch 10x5mm
• Track material carbon
• Electrical rotation angle 245 ±20°

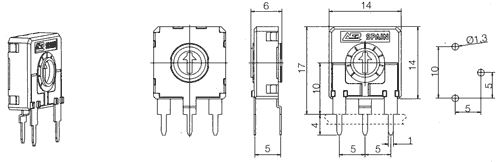

• Body dimensions 14x14x6mm
• Mechanical durability 1000 cycles
• Additional information
• Gross weight: 1.402 g
• Manufacturer part number: CA14NH5-10KA2020

Parametri

10K
250mW
THT
Vienapgriezienu
