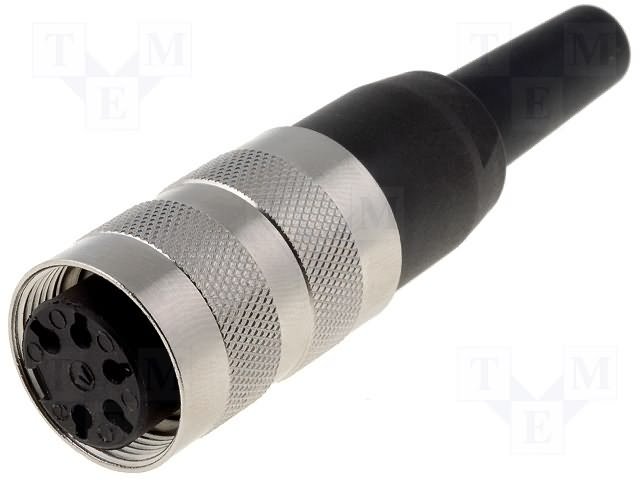

• Female plug for cable 5P
• Screw locking connectors C091A series are suitable for many industrial, measurement and control applications, for machine constructions, medical apparatus, telecom devices and sea applications.
• Connectors have nickel plated metal body and plastic rear housing.
• Solder terminations silver plated.
• Rated voltage : 300 V AC/DC, except 5 PIN (stereo)
• : 100 V AC/DC - 5 PIN (stereo)
• Rated current : 5 A at +40°C
• Insulation resistance : > 1012 Ω;
• Contact resistance : < 5 mΩ;
• Temperature range : -40°C to +85°C
• Protection degree : IP40
• Conform to : UL E63093
