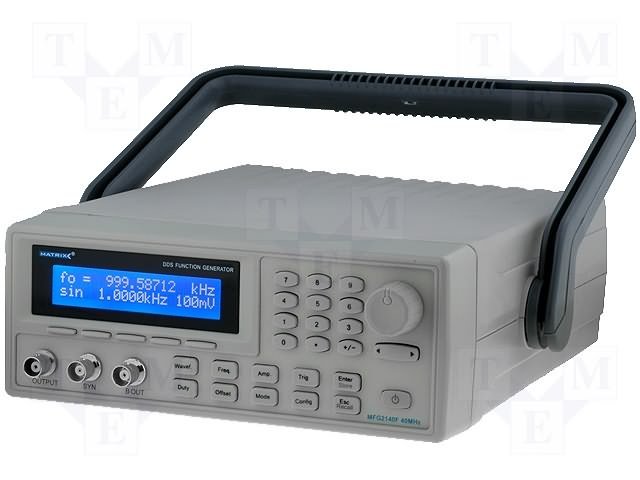

MFG-2140F Signala generators
MFG-2140F Signala generators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

MFG-2140F Signala generators

Cena: 483.64 €
00017621
MFG-2140F
0
  • Apraksts

    • Specification
    • Generator type function
    • Waveform frequency range accuracy: 0,05Hz (>100Hz), 100µHz (<100Hz), maximal resolution: 100µ or 8 digits, range: 1mHz...1MHz (other waveforms), range: 1µHz...40MHz (sin waveform), range: 1µHz...5MHz (rectangular waveform)
    • Display LCD 8 digits
    • Frequency meter 1...100MHz
    • Output parameters amplitude without load: 2mVpp-20Vpp, amplitude at 50Ω; load: 1mVpp-10Vpp, impedance: 50Ω;, amplitude flatness: 5%
    • Rectangular waveform parameters asymmetry: <2% + 20ns, rise/fall time: <25ns, overshot: <5%
    • Sweep mode period: 10m...10s, resolution: 1Hz, internal, external, single pulse triggering, range: 1...40MHz
    • Harmonic distortion level 0,25% (<20kHz), 0,4% (20kHz-1MHz), 1% (1MHz-10MHz), 2% (10MHz-20MHz)
    • Triangle waveform parameters linearity: <0,1%
    • Pulse signal pulse period: 10µs...100s, TTL level, pulse width resolution: 0,5µs, pulse width: 10µs...100µs, output: ASK SYNC OUT
    • External amplitude modulation depth of modulation: at 1Vpp ± 0,4Vpp output sine signal depth can reach 100%, 1kΩ; input impedance
    • FSK and PSK modulation PSK carrier: sinusoidal, rectangular, PSK phase difference: -360°...360°, pulse width: 10µs...10s, internal, external, single pulse triggering, range: 1...40MHz
    • Internal amplitude modulation carrier frequency: 1µ...40MHz, depth of modulation: 0...100%, frequency modulation: 10m...20kHz, modulated waveform: internal, internal carrier, frequency modulation stability: 50ppm
    • Internal frequency modulation modulation frequency: 100mHz...10kHz, carrier frequency: 0,1Hz...40MHz, modulated waveform: internal, internal carrier, frequency shift: 0,1Hz...40MHz, stability: 50ppm
    • Internal phase modulation carrier frequency: 0,1Hz...10kHz, maximal phase shift: 360°, frequency modulation: 100m...10kHz, modulated waveform: internal, carrier: sinusoidal, rectangular, stability: 50ppm
    • Features:
    • RS232 interface
    • frequency meter
    • possibility of reaching very low frequencies
    • double backlit LCD
    • waveforms: sinusoidal, rectangular, triangle, positive slope, negative slope, white noise, sin(x)/x, Index up, Index down
    • possibility of recording waveform to memory
    • Standard equipment:
    • software
    • mains cable
    • Additional information
    • Gross weight:2 kg
